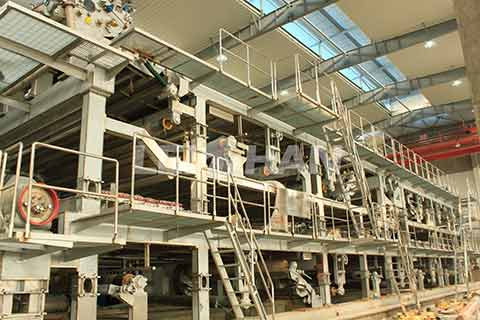

2500mm Double-Wire Kraft Paper Machine

The forming part of this 2500mm kraft paper machine uses an air-cushion headbox for pulp supply, combined with a double-wire forming configuration—the top wire is 7 m long and the bottom wire is 19 m long. The drying part of this 2500mm kraft paper machine is equipped with 30 Φ1800 mm drying cylinders, arranged in a 10+10+sizing+10+two-roll calender configuration. The maximum steam pressure used in the drying cylinders is 0.5 MPa (working pressure); the steam system is well-designed and highly thermally efficient.

The dynamic balancing speed for the rolls of this 2500mm kraft paper machine is 400 m/min, for the drying cylinders is 400 m/min, and for the paper rollers is 1,000 m/min, ensuring low vibration and a stable paper web during high-speed operation. The complete set of rolls for this 2500mm kraft paper machine is supplied with tapered bearings (no removal sleeves required), further ensuring operational precision and service life.

Leizhan can provide customized paper and pulp machinery selection solutions based on raw material ratios, basis weight ranges, machine speed requirements, and plant conditions, covering the entire process from process design and equipment manufacturing to installation, commissioning, and operator training. Please email me your requirements to receive further details and a quote. Email: leizhanpapermachine@gmail.com
