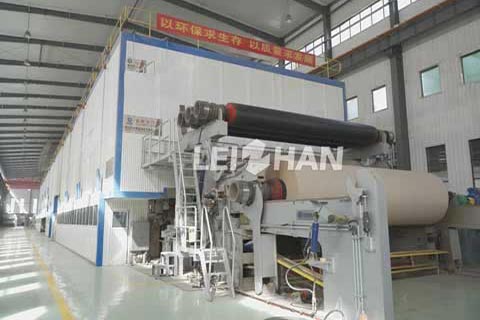

5000MM Double-Wire Corrugated Paper Machine

This 5000mm double wire corrugated paper machine achieves a forming efficiency of 97% and a finished product yield of 95%, utilizing waste paper as the furnish; it operates with headbox consistencies of 0.4–0.8% and 0.8–1.2% and a compressed air pressure of ≤0.6 MPa, making it fully compatible with the process conditions of waste paper pulping lines. The 5000mm double wire corrugated paper machine employs a sectional drive system with AC motors and variable-frequency speed control, ensuring independent, precise synchronization across drive points; this setup offers high control accuracy and low energy consumption, automatically matching the optimal power output to varying basis weights and machine speeds.

This 5000mm double wire corrugated paper machine utilizes a double-wire forming structure combined with all-ceramic dewatering elements. This setup ensures rapid and uniform dewatering of the stock in the forming section and thorough fiber interlacing, resulting in a cross-machine basis weight variation of ≤±1.5%, a cross-machine moisture variation of ≤±1.0%, and an average cross-machine shrinkage rate of ≤3.5%—thereby guaranteeing the strength and uniformity of the high-strength corrugating medium. The dewatering element panels in the forming section of this 5000mm double wire corrugated paper machine are made entirely of ceramic (99% Al₂O₃) with a fiberglass-reinforced plastic (FRP) base; the box body is constructed from welded 304 stainless steel and undergoes special heat treatment, ensuring wear and corrosion resistance, as well as dimensional stability and durability during long-term use.

Leizhan can design tailored paper pulping production line solutions to meet your specific needs. If you are looking for cost-effective paper pulping equipment, please feel free to contact me for details and a quotation. Email: leizhanpapermachine@gmail.com
