25TPD Energy-Efficient Tissue Paper Machine,Paper Mill Equipment Price

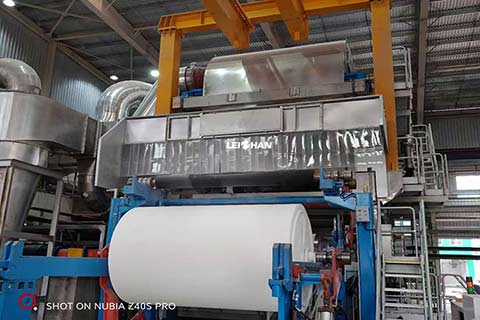

This 25tpd energy-efficient tissue paper machine features a main gauge of 3,900 mm (subject to final design) and a compact single-level layout that minimizes the footprint while facilitating operation, maintenance, and production line configuration. This 25tpd energy-efficient tissue paper machine utilizes an AC variable-frequency sectional drive system with a main drive power of 200 kW; each drive point operates independently yet maintains precise speed synchronization, offering high control accuracy, a wide speed regulation range, and low energy consumption.

Specifications of the 25TPD Energy-Efficient Tissue Paper Machine

Basis weight: 13–25 g/m²
Trimmed width: 2850 mm
Operating speed: 450 m/min (Yankee dryer)
Design speed: 500 m/min
Dynamic balancing speed: 600 m/min
Overall dimensions: 18000 × 10000 × 8000 mm (L × W × H)

Leizhan boasts a team of professional engineers capable of designing tailored pulp and paper production solutions based on customer requirements and supplying a complete range of equipment. Please email us your requirements to receive a customized proposal and a quote. Email: leizhanpapermachine@gmail.com

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
