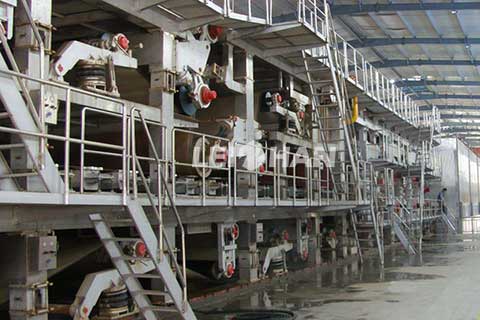

3800mm Double Layer Kraft Paper Machine

Double layer kraft paper machine mainly uses recycling waste paper as raw material to produce kraft paper. We can provide the whole kraft paper making line machine, from the waste paper pulping machine to the kraft paper machine.

Double Layer Kraft Paper Machine

Paper type: kraft paper
Net paper width: 3800mm
Basis weight: 100-200gsm
Design speed: 300m/min
Working speed: 200-250m/min
Production capacity: 150t/d
Gauge: 4800mmm
Drive mode: AC motor variable frequency drive

Our company Leizhan is a professional manufacturer of pulping machine and paper machine. If you are interested in kraft paper machine, welcome contact us for more details.
Email: leizhanpapermachine@gmail.com

Project Case

Kraft Liner Paper Making Line

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Read More
Corrugated Paper Making Line

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Read More
Cultural Paper Making Line

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
