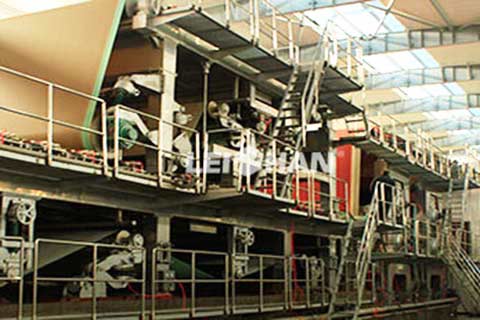

200T Duplex Board Paper Making Machine,Kraft Board Paper Machine For Sale

Duplex board paper making machine mainly uses waste paper to produce duplex board paper. Our company can provide the sets of recycling pulping machine and paper machine for paper mill.

Duplex Board Paper Making Machine Details

Paper type: duplex board paper
Trimmed width: 4200mm
Basis weight: 80-150gsm
Design speed: 350m/min
Working speed: 300-350m/min
Production capacity: 200t/d
Gauge: 5300mm
Net width: 4500mm

Our company Leizhan is a professional manufacturer of pulp and paper making machine. If you want to know more about our paper machine, welcome contact us.
Email: leizhanpapermachine@gmail.com

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
