Corrugated Paper Manufacturing Line

Home » Solution » Corrugated Paper Making Line » Corrugated Paper Manufacturing Line

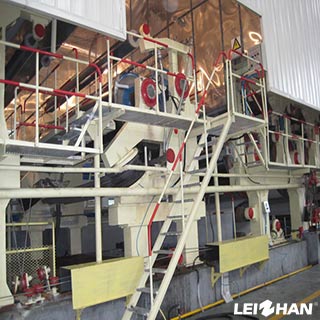

Corrugated-Paper-Manufacturing-LineCorrugated-Paper-Manufacturing-Line-1

Supply Ability: 100 Set/Sets per Year
Production capacity: 25-380t/d
Port: Qingdao, Tianjin, Shanghai or others
Features: higher capacity, lower energy consumption, easier operation

Output Paper Type:  tissue paper, writing paper, corrugated paper and so on.

Suitable Raw Material: original pulp, waste book and paper, white paper edge, waste bin, etc.

Features and Specifications

Net paper width: 1092-1300mm
Speed: 20-100m/min
Output weight: 15-140g/m²
Capacity:2.5-3T/D
Standard of cylinder: φ1000×1450mm (stainless steel in slip)
Standard of dryer can: φ1500×1450mm (cast iron alloy dryer)
Rail gauge: 1800mm
Drive way: decelerator drive (350 type)
Size: 8400×4600×3000
Weight of equipment: 1.5ton
One set of speed motor is equipped with 7.5kw

Leizhan is a professional manufacturer of pulping & paper making equipments. If you are interested in any of our products, please feel free to contact us for further details.
