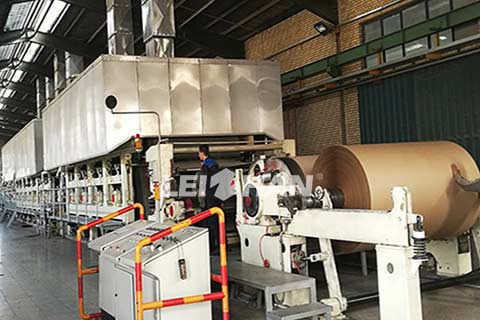

350T Fluting Paper Production Line Machine

Fluting paper production line machine mainly produce fluting paper, corrugated paper, etc. This machine uses waste paper as raw material. We can supply the whole waste paper pulping machine and paper making machine.

Fluting Paper Production Line Machine Details

Paper type: fluting paper, corrugated paper, etc
Net paper width: 4200mm
Basis weight: 100-140g/m2
Production capacity: 350t/d
Design speed: 550m/min
Working speed: 500m/min
Dynamic balancing speed: 650m/min
Wire width: 4750mm
Gauge: 5400mm
Paper trimmed width of reeling machine: 4260mm
Drive method: AC variable frequency section drive

Our company Leizhan is a professional manufacturer of pulp and paper making machine. We can offer the whole paper making line machine. If you want to know more about our paper making machine, you can contact us.

Project Case

Kraft Liner Paper Making Line

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email:

Read More
Corrugated Paper Making Line

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Read More
Cultural Paper Making Line

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
