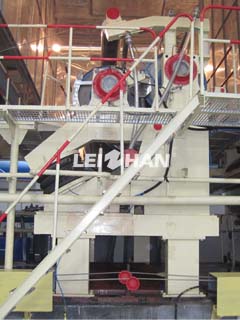

3400mm Corrugated Paper Machine

3400 corrugated paper machine3400 corrugated paper machine

3400mm Corrugated Paper Machine is mainly used for making high-strength corrugated paper. The finished paper has superior quality with flat surface, uniform thickness, no wrinkle, cracks and holes, and other paper diseases. Here are some details about 3400mm corrugated paper machine as following:

Main Technical Data of 3400mm Corrugated Paper Machine

Main Product High-strength Corrugated Paper
Raw Material OCC
Basic Weight 90-180g/㎡
Production Capacity 150t/d
Width of Paper 3400mm
Width of Rolling Paper 3450mm
Working Speed 350m/min
Designed Speed 400m/min

Leizhan can also provide a set of pulping equipmen for the production of 3400mm corrugated paper machine:

  1. Pulping: Chain Conveyor, Bale Breaker, Drum Pulper, D Type Hydrapulper and High Concentration Hydrapulper and so on.
  2. Screening: Middle Concentration Pressure Screen, Drum Screen, Vibrating Screen, Inflow Pressure Screen and so on.

For more specific data about 3400mm Corrugated Paper Machine or any pulping machine, please contact us for free. Welcome to contact us if you need any pulping or paper machine.
