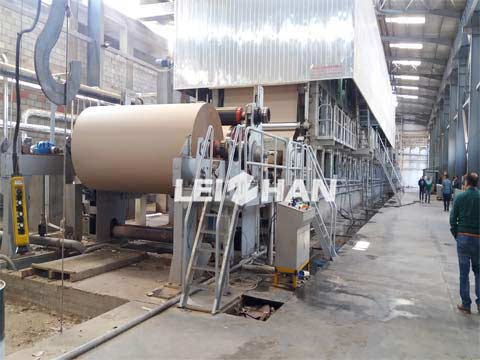

Muti-Cylinder Kraft Paper Machine,Test Liner Paper Making Machine

Muti-Cylinder kraft paper machine mainly uses waste paper to making 90-250g/m² kraft paper, T paper. This machine is composed of wire forming section, pressing section, drying section, reeler, calender, foundation section, paper machine auxiliary system and so on.

Main Data Of Muti-Cylinder Kraft Paper Machine

Paper type: kraft paper
Trimmed width: 3600mm
Basic Weight: 90-250g/m2
Rolling paper width: 3660mm
Design Speed: 250m/min
Working speed: 180m/min
Production capacity: 120t/d
Crawling Speed: 25m/min
Gauge: 4700mm

Our company Leizhan is a professional manufacturer of pulp and paper making machine. We can offer the whole kraft paper making line machine for paper mill. If you are interested in our machine, welcome contact us.
Email: leizhanpapermachine@gmail.com

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
