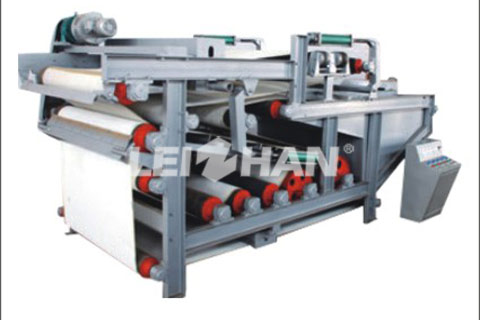

HD Series Sludge Dewatering Machine

HD Series Sludge Dewatering Machine

HD Series Sludge Dewatering Machine is mainly used to concentrate sludge in paper making industry, municipal engineering, etc.

Application & Features

1. Double helix network structure.

2. Wedge dehydration, a specially designed dewatering roll.

3. Pneumatic tensioner.

4. High sludge concentration, low energy consumption.

Main Specification

Type HD-1 HD-2 HD-3 HD-4 Note
Width of net (mm) 1500 2000 2500 3000 Pneumatic (manual)
adjust
deviation
Pneumatic(manual)
tensioner,
anticorrosive
processing
Speed of belt(m/min) 1.5-8
Concentration of inputPulp(%) 1.5-4
Concentration of outputPulp(%) 20-30
Pressure of washing water (Mpa) ≥0.5
Quantity of mud (t/d) 110-280 150-380 210-480 260-400
Motor power(kw) 2.2+1.1 3.0+1.5 4.0+2.2 5.5+2.2

Download complete technical literature [PDF]
