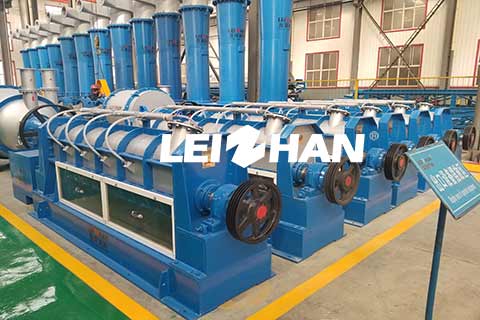

PZ Series Reject Separator

PZ series reject separator is mainly used for fiber relief and impurities separate for tailing in the coarse screen system for waste paper pulp. PZ series reject separator has the benefits of less fiber loss and low production cost.

Application and Features

1. Used for fiber relief and impurities separate for tailing in the coarse screen system for waste paper pulp.

2. Specially designed rotor produce centrifugal force in the process of high-speed rotation and backwash water can relief pulp effectively, achieve pulp and impurities easily separate.

3. Closed working condition, clean environment.

4. Openable upper cover makes it easy and convenient to maintain.

Main Specification

Model PZ2 PZ3
Production Capacity(t/d) 30-60 60-90
Motor Power (Kw) 30-37 55

Work Principle

PZ series slag discharge separator( reject separator) is an ideal equipment in the waste paper pulping system. PZ series reject separator uses close operation system, no water splash and changes the working condition in a better way. Continuous discharge, not easy to block sieve plate, with good treatment effect. Which also have fiber relief function, reduces the fiber loss and production cost.

Download complete technical literature [PDF]

Project Case

Kraft Liner Paper Making Line

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Read More
Corrugated Paper Making Line

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Read More
Cultural Paper Making Line

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.

Read More
