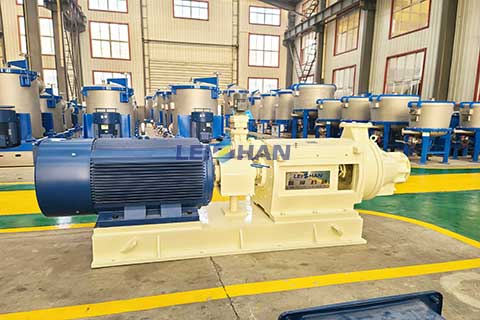

ZM Series Conical Refiner

ZM Series Conical Refiner

ZM Series Conical Refiner is mainly used for beating  pulp after cleaning, which can be used with double disc refiner in series. It can beat water paper pulp, wood pulp, cotton pulp etc.

Application & Features

1.The refining area of this equipment is long, slurry can be fully processed, the ability of cutting fiber is strong.
2.Shell’s lined is stainless steel, which can improve service life.
3.The system is constant power control, which can make the beating effect more stable.
4.Rotor and stator have variety toothed. Suitable various raw materials.

Main Specification

Size of Rotor(mm) ɸ450 ɸ460
Operation Concentration(%) 3-5 3-5
Product Capacity(t/d) 20-60 30-150
Motor Power(kw) 110 132-315

Download complete technical literature [PDF]
