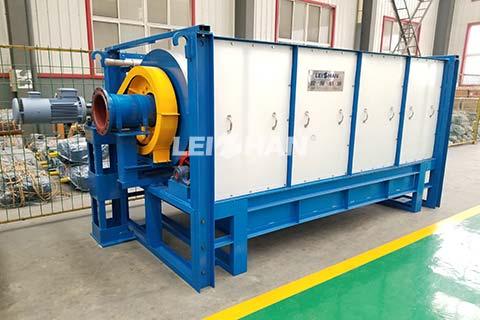

ZST Series Drum Screen

ZST Series Drum Screen

ZST series drum screen is used to remove light impurity in recycled paper pulping system.

Application & Features

1. Mainly used for removing large light impurities in waste paper pulping system.

2. Optimized helical blade and water spray system ensures the high purity of paper pulp and less fiber loss.

3. Simple structure, reliable operation and easy maintenance.

4. Effective screening, low motor power.

Main Specification

Type ZST1A ZST2A ZST4A
Diameter of screen drum(mm) Φ1000 Φ1500 Φ2000
Passing capacity(L/min) 3000-5000 6000-8000 9000-12000
Motor power(Kw) 4 5.5 11

Work Principle

Drum screen provides a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process. This method of screening helps to reduce operating and investment cost and increase product quality, while allowing rapid and large volume processing.

ZST series drum screen is made of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.

Download complete technical literature [PDF]
