JB Series Agitator

JB Series Agitator

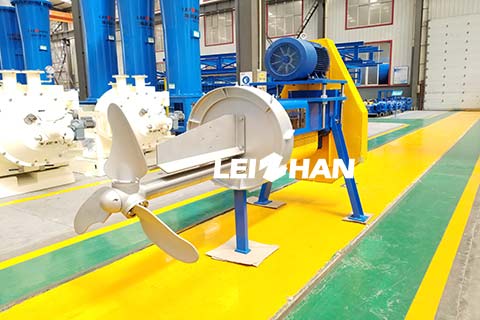

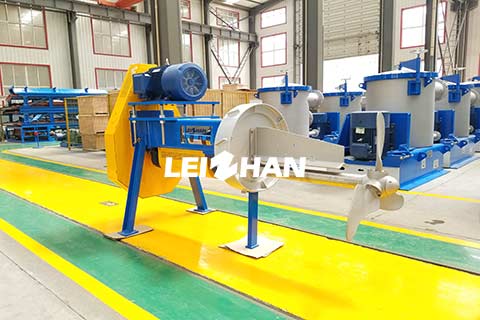

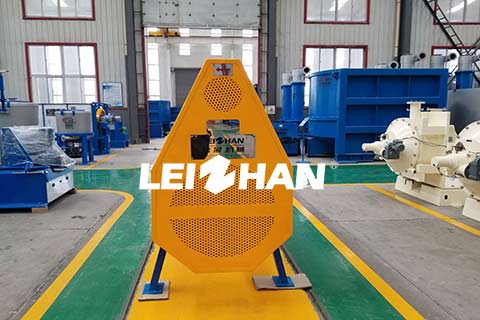

JB Series Paper Pulp Chest Agitator is used to stir pulp cyclically in square chest to maintain the pulp liquid in suspending condition, which ensures the pulp components even distribution ,and it is good for fully reaction of chemical liquid.

Application & Features

1.Mainly used to stir pulp cyclically in chest to maintain the pulp liquid in suspending condition, which ensure the pulp components even distribution.

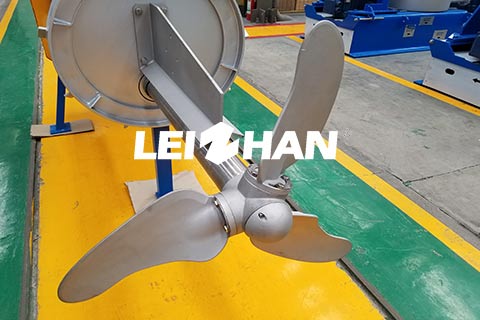

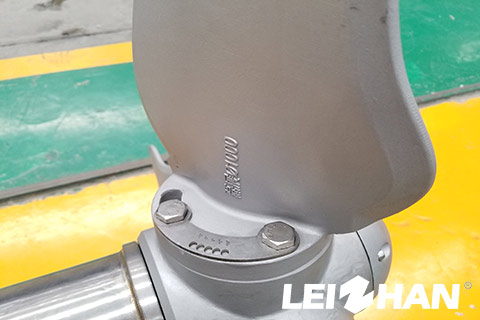

2.Advanced blade design, strong thrust. It can be adjusted the angle according to the concentration of the slurry.

Main Specification

Model JB500 JB600 JB700 JB750 JB850 JB1000
Vane Diameter(mm) ɸ500 ɸ600 ɸ700 ɸ750 ɸ750 ɸ1000
Consistency(%) ≦5
Chest Volume(m3) 20-50 30-60 35-70 40-75 50-85 70-110
Motor Power(kw) 5.5/7.5 5.5/7.5/11 7.5/11/15 11/15/18.5 15/18.5/22/30 15/18.5/22/30
Model JB1150 JB1250 JB1350 JB1500 JB1800
Vane Diameter(mm) ɸ1150 ɸ1250 ɸ1350 ɸ1500 ɸ1800
Consistency(%) ≦5
Chest Volume(m3) 80-120 90-140 100-150 120-180 150-230
Motor Power(kw) 18.5/22/30 22/30/37 30/37/45 37/45/55 45/55/75

Download complete technical literature [PDF]
